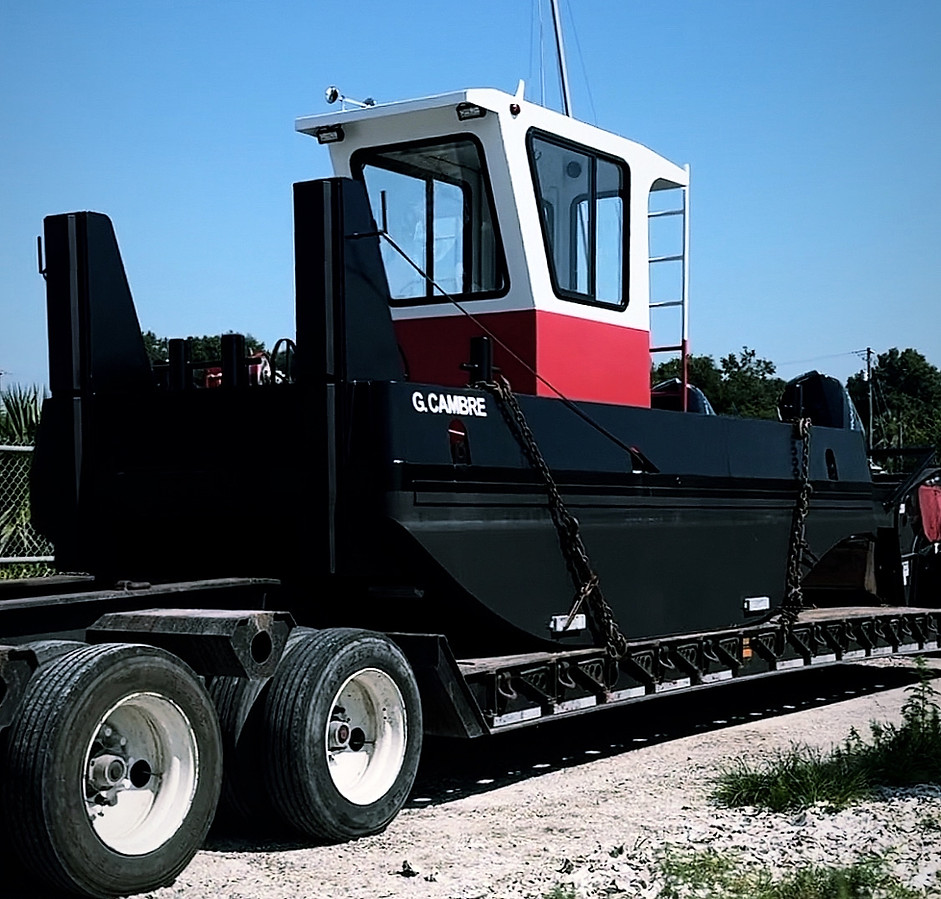

G. CAMBRE

LENGTH: 20'

BEAM: 8'

DEPTH: 3'

HULL# EM20000724

Dimensions & Hull Construction

Length: 20 ft
Beam: 8 ft
Depth: 36 in
Draft: 26–28 in
Hull Material: ¼” A36 U.S. domestic steel plate
Main Deck: ¼” A36 steel
Side Shell: ¼” A36 steel
Bottom Shell: ¼” A36 steel
Internal Structure: 3” x 3” x ¼” longitudinal and transverse stiffeners throughout
Lifting Lugs: (4) ¾” thick x 4” wide x 8” long with 2.25” lifting holes

Power & Propulsion

Wheelhouse

Material: 3/16” A36 steel
Features: 5 windows, steel door with round-bar handle, removable flange angle, lifting lugs
Ladder: Removable (port side) with door pin to hold open
Bulwark: 15” height with 2” toe flange (3/16” thick A36), continuous 100% around, offset inboard 1.5”
Windows: Black trim – forward and aft fixed, port & starboard sliding

Deck & Hull Features

Push Knees: 3 ft high x 12 in wide above main deck, each fitted with five 2” rubber pads (10” x 36”)
Zincs: (8) zinc plates, 3” x 12” x 1.25”, cast-in galvanized steel strap
Deck Gear: (4) quarter bitts, (1) forward head bitt, (2) non-rolling button chocks
Deck Hatch: Flush-mount stainless steel with multi-bolt design
Deck Winches: (2) Thern 2-ton winches (RH & LH) with 75 ft of ⅜” stainless cable, 12” loop ends
Rub Rail: ½” x 4” flat bar (port & starboard, 20 ft each side)

Fuel System

65- 75-gallon rectangular marine fuel tanks, low profile
Dimensions: 24.5” x 18” x 11.5”
Features: Quick-connect fittings, 3/16” containment cover with finger holes, spray-less connectors

Electrical & Lighting

12V DC system with 4-gang rocker switch panel and voltmeter (USB 4.8A LED)
(4) 7” deck lights, (2) amber, (2) white LED mast lights
Navigation lights (red/green), single trumpet horn, dual-color (white/red) overhead light in wheelhouse
(2) 2000-GPH bilge pumps with auto function and ball check valves
Battery System: (2) NAPA heavy-duty marine batteries, (2) boxes, master battery switch
Marine-grade wiring throughout (14-gauge accessories, 6-gauge engine power, 2-gauge direct to engines)
Dual Mercury tachometers (0-6000 RPM with LED indicators)

Steering & Controls

Dual hydraulic steering system: Dometic SeaStar (rated 300+ HP per ram)
SeaStar helm pump, liquid tie-bar valve (HA5471-2), stainless steel steering wheel (10°, 15.5”)
Twin-engine top-mount remote control throttle
80 ft hydraulic hose, transom cable boots

Mast
